Sydney vs Newcastle vs Albury: Achieving 7-Stars Across NSW Climate Zones

Right now, the path to 7-star performance isn't a one-size-fits-all solution.

From Sydney's temperate coastal microclimate to Newcastle's moderate seaside conditions and Albury's hot-dry summers with cool winters, each location demands its own strategic approach to orientation, shading, glazing, and insulation.

Let's walk through three distinct design playbooks, grounded in the real-world climate challenges of NSW's major centres.

The Big Picture

NSW spans multiple climate zones under both NCC and NatHERS classifications, creating a complex landscape for thermal performance. Sydney operates within three distinct NatHERS zones: Zone 17 (Sydney CBD), Zone 56 (covering coastal, inner city and western suburbs), and Zone 28 (Richmond) covering remaining areas. Meanwhile, Newcastle sits in the coastal strip of NCC Zone 5 (warm temperate), encompassing areas up to 32 degrees south, and Albury-Wodonga falls within NCC Zone 4 (hot dry summer, cool winter) covering most of southern central Australia including inland NSW and Victoria.

These distinctions matter more than postcode boundaries suggest. Analysis shows that a house in Bankstown requires 50% more energy than the same house located in Mascot, despite both falling within the same NatHERS climate zone. Similarly, the thermal performance strategies that work in Sydney's moderate coastal environment won't necessarily deliver 7-star results in Albury's continental extremes.

Sydney NatHERS Playbook: Zone 56 (Coastal/Metropolitan)

Climate Profile: Temperate maritime with moderate temperature swings, temperature hovering between 10°C and 30°C for around 95% of the time

Orientation strategy

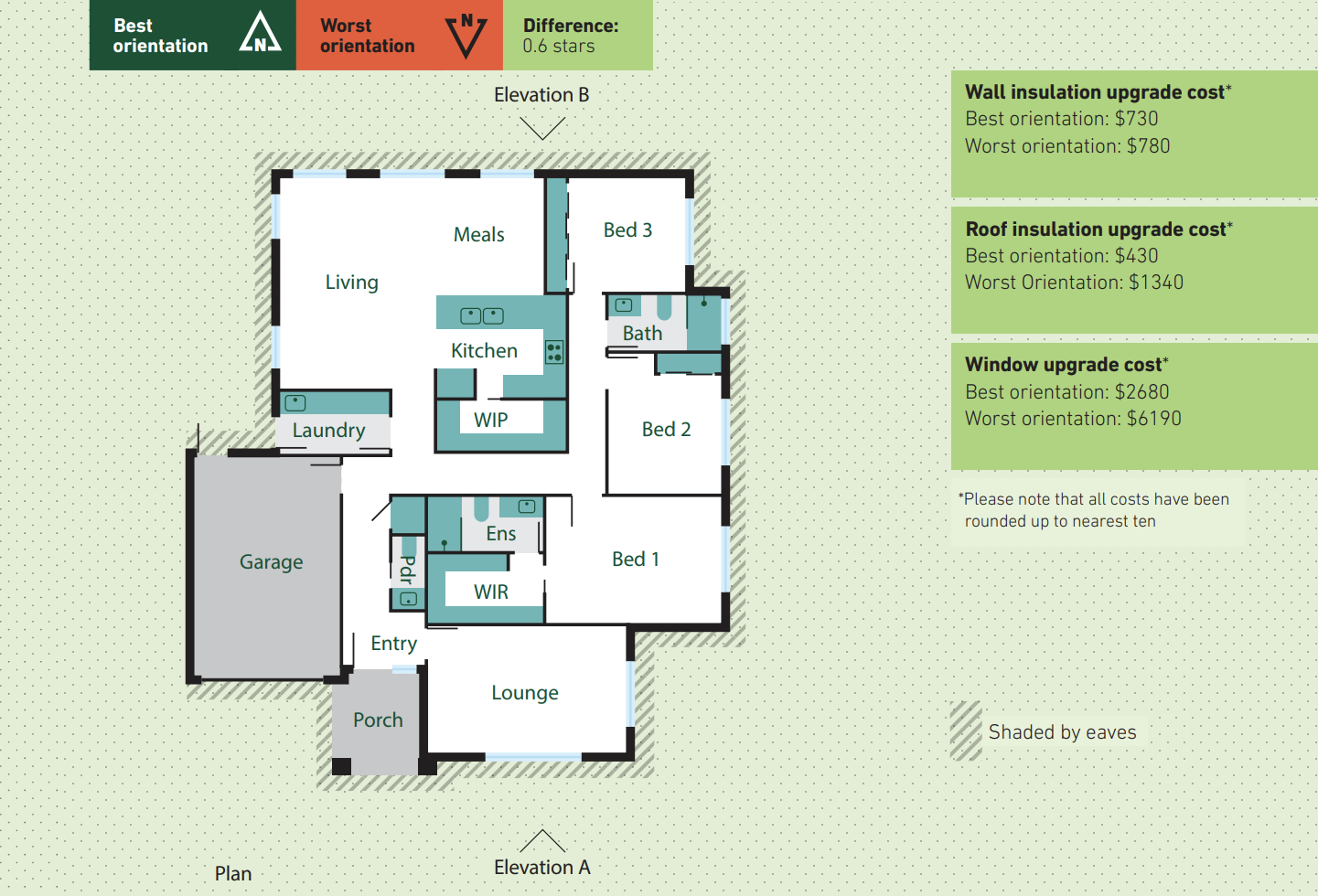

Position living areas on the north and north-east faces to capture winter solar gain while maintaining access to cooling breezes. This example house achieves 7-star performance with living/kitchen areas facing north-west and bedrooms positioned north, north-east and south. The key is balancing solar access with protection from harsh western exposure.

Shading approach

Deploy moderate eaves (600-900mm) with adjustable external blinds on west-facing windows. Strategic shading can block up to 90% of direct solar heat gain, particularly crucial for afternoon summer comfort. Consider deciduous landscaping on western boundaries to provide seasonal variation.

Glazing requirements

Sydney Zone 56 can achieve 7-star performance with single glazing when orientation and other factors are optimised, though high performance double glazing (U-value ≤2.5, SHGC 0.49-0.60) provides additional thermal comfort. Focus double glazing investment on large living area windows first.

Insulation specifications

• Walls: R2.0 external wall insulation including internal garage walls
• Ceiling: R4.0 ceiling insulation with reflective sarking (reflective side down)
• Floor: Waffle pod slab with standard thermal breaks

The Sydney advantage lies in its moderate climate—you can achieve 7-star performance without extreme measures, but attention to detail in thermal bridging and air sealing becomes critical.

Newcastle NatHERS Playbook: Zone 15 (Coastal Temperate)

Climate Profile: Coastal NCC Zone 5 with sea breezes moderating temperature extremes and higher humidity levels

Orientation strategy

North-facing living areas remain paramount, but Newcastle's coastal location allows for more generous east-facing openings to capture morning light and sea breezes. Zone 5's warm temperate climate benefits from designs that provide effective heating in winter while managing summer cooling loads.

Shading approach

Extended eaves (900-1200mm) help manage the slightly more intense coastal sun while protecting the building envelope from salt-laden moisture. Operable external screening on eastern and western elevations provides flexibility for seasonal adjustments. Covered outdoor living areas such as verandas can shade and cool incoming air, particularly effective in coastal environments.

Glazing requirements

Newcastle Zone 15 requires the same specification as Sydney: single glazing for basic compliance, or high performance double glazing (U-value ≤2.5, SHGC 0.49-0.60) for enhanced comfort. However, coastal conditions may justify prioritising corrosion-resistant frames and improved sealing against salt spray.

Insulation specifications

• Walls: R2.0 external walls with enhanced vapour management for coastal moisture
• Ceiling: R4.0 with careful attention to continuous installation around penetrations
• Floor: Waffle pod slab, potentially with enhanced under-slab moisture protection

Newcastle's coastal advantage means thermal mass strategies work well, particularly polished concrete floors that can store and release thermal energy while managing the moderate temperature swings.

Albury NatHERS Playbook: Zone 20 (Continental Inland)

Climate Profile: Hot dry summers and cool winters requiring both effective cooling and heating strategies

Orientation strategy

North-facing living becomes absolutely critical in Albury's continental climate. Maximise north-facing walls and consider multilevel designs that allow sunlight into all rooms while maintaining a compact form. Minimise west-facing glazing and buffer service areas (bathrooms, laundry, garage) on the south side.

Shading approach

Deep eaves (1200-1500mm) and pergolas are essential for managing intense summer heat while allowing winter solar penetration. In hot regions, shading mitigates excessive heat gain, reducing reliance on air conditioning and lowering energy costs. Consider automated external blinds or shutters for western exposures.

Glazing requirements

Albury Zone 20 requires high performance double glazing (U-value ≤2.5, SHGC >0.49) as a minimum standard due to the extreme temperature variations. This higher SHGC allows beneficial winter solar gain while the low U-value prevents heat loss during cold winter nights.

Insulation specifications

• Walls: R2.8 external wall insulation with enhanced thermal bridging management
• Ceiling: R6.0 ceiling insulation to handle both summer heat and winter cold
• Floor: Waffle pod slab with slab edge insulation to prevent thermal bridging

The inland continental climate demands the highest performance envelope specifications. High thermal mass construction works particularly well, with insulated concrete slabs and high thermal mass walls helping to moderate the extreme diurnal temperature range.

Universal Strategies Across All Zones

Certain design principles apply regardless of location. Building for 7 stars at its foundation begins with good design and orientation—these elements are crucial to reduce costs and make minimal changes to other elements.

Thermal bridging management

Thermal bridges can significantly reduce thermal performance, creating paths of least resistance for heat transfer. Pay particular attention to slab edges, window frames, and structural connections. Increasing R-values in walls, ceiling, roof, floors, slab edge and under slabs leads to better energy efficiency.

Air sealing strategy

Target an air permeability of not more than 10 m³/hr.m² at 50 Pa reference pressure when tested in accordance with AS/NZS ISO 9972 Method 1. This requires attention to service penetrations, window sealing, and junction details.

Zoning for efficiency

Include ceiling fans in living rooms for all climate zones except the coldest alpine areas. This allows higher temperature set points while maintaining comfort, particularly effective during shoulder seasons.

Future-proofing considerations

Australia's climate is projected to continue changing, with average temperatures expected to increase and heatwaves becoming more common. Design strategies should anticipate increased cooling loads while maintaining winter performance.

The Assessment Reality

Working with a NatHERS assessor early in the design process proves crucial. Accredited assessors are extensively trained to improve ratings and provide options to get to 7 stars and beyond. Moreover, the software is flexible and adaptable—if your client cannot live without those massive western-facing windows, you can look at options to mitigate less than ideal design choices through better insulation, climate appropriate glazing or adjusted colours.

The Long-Term Perspective

Today's 7-star standards represent the foundation for tomorrow's net-zero buildings. Analysis shows the estimated additional cost of materials for a single-storey four-bedroom house to meet 7-star standards would be around $3,310, adding approximately $150 per year to a 30-year mortgage, but with predicted annual energy bill savings of at least $300 per year.

The strategies outlined here aren't just about compliance—they're about creating homes that perform consistently across NSW's diverse climate zones while delivering long-term comfort and efficiency. Whether you're designing for Sydney's temperate moderation, Newcastle's coastal influences, or Albury's continental extremes, the path to 7-star performance lies in understanding and responding to local climate realities.

Bottom line: Success in achieving 7-star performance across NSW depends on matching your design strategy to your specific climate zone. Generic approaches fail when local conditions demand targeted responses. Start with orientation and thermal envelope fundamentals, then fine-tune glazing and insulation specifications to match your local climate's unique challenges.

‍
